WHEEL TETHERS
Safety in motor racing sport leaves no room for compromise. As a leading manufacturer, Cortex Hümbelin AG develops and produces wheel tethers for all the reputable teams - from the junior racing classes through to Formula 1 and LMDh. An excellent performance-weight ratio combined with extraordinarily high cutting resistance is the basis for this success. With our expertise and many years of experience in development and production, our FIA homologated wheel tethers offer the highest degree of safety even in the event of serious accidents. Our products are made from a combination of specially processed high-tech fibres. The technologies we have developed are being continually developed further.
The main characteristics of our wheel tethers are:
- low weight
- high energy absorption capability
- extreme cutting resistance under load
- resistance to high temperatures
- excellent chemical resistance
- individual designs with
customer-specific tether geometries
Wheel tethers for junior categories, LMDh, Formula E up to Formula 1
Homologation to FIA Standard 8864-2022 and 8864-2013
Available in two versions:

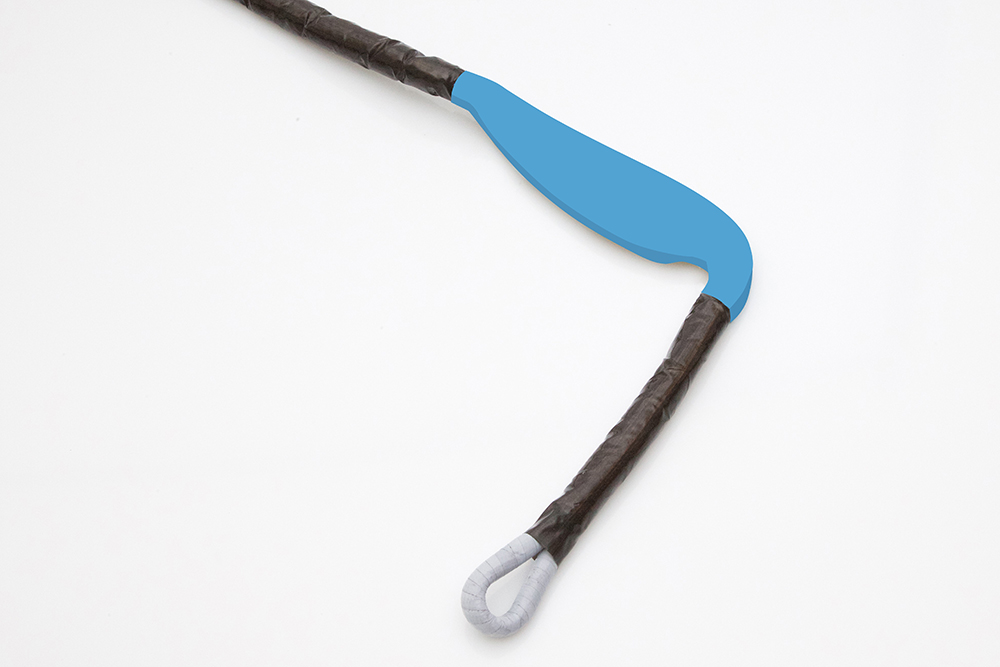

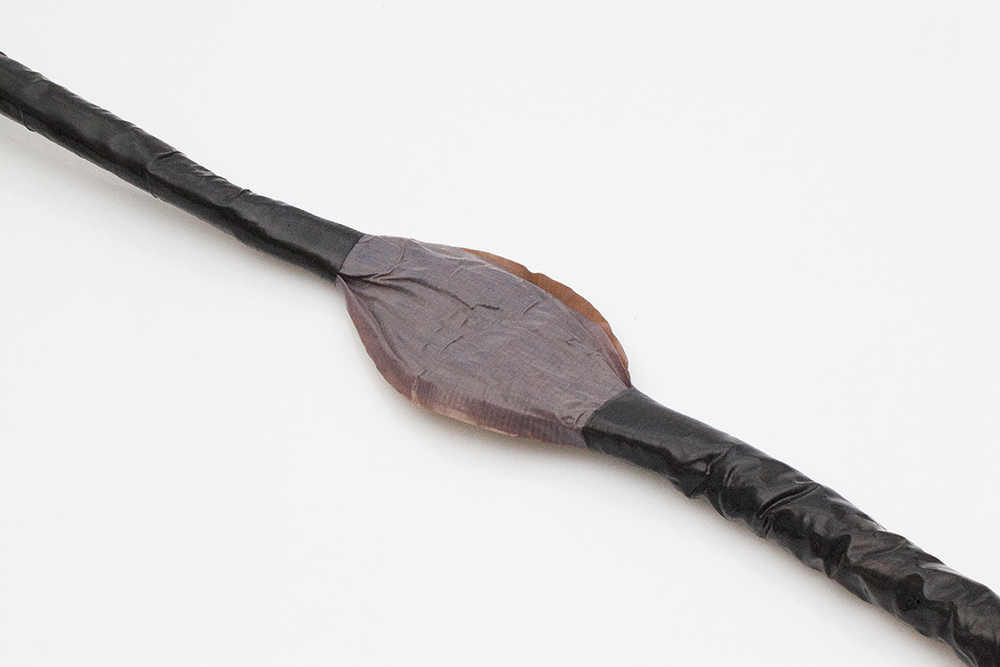

- Moulded
- to individual design
- in one or several sections fixed cross-section area and shape
- compact and space-saving
- quick and simple installation

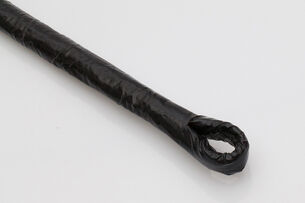

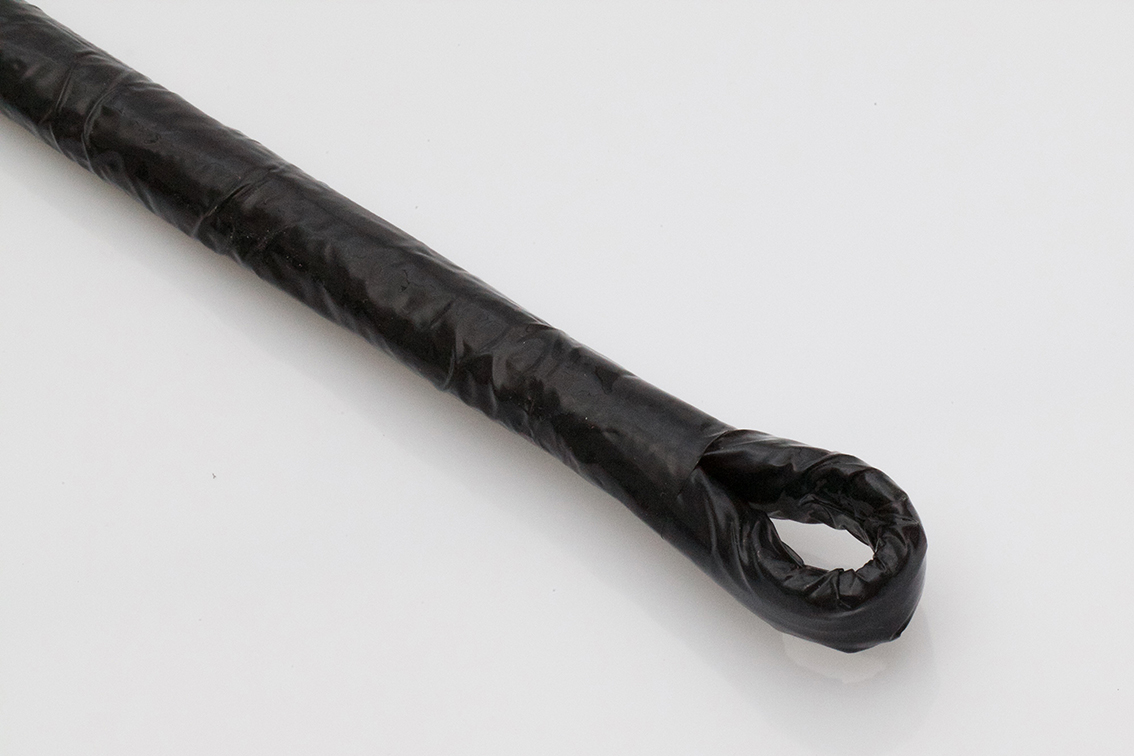

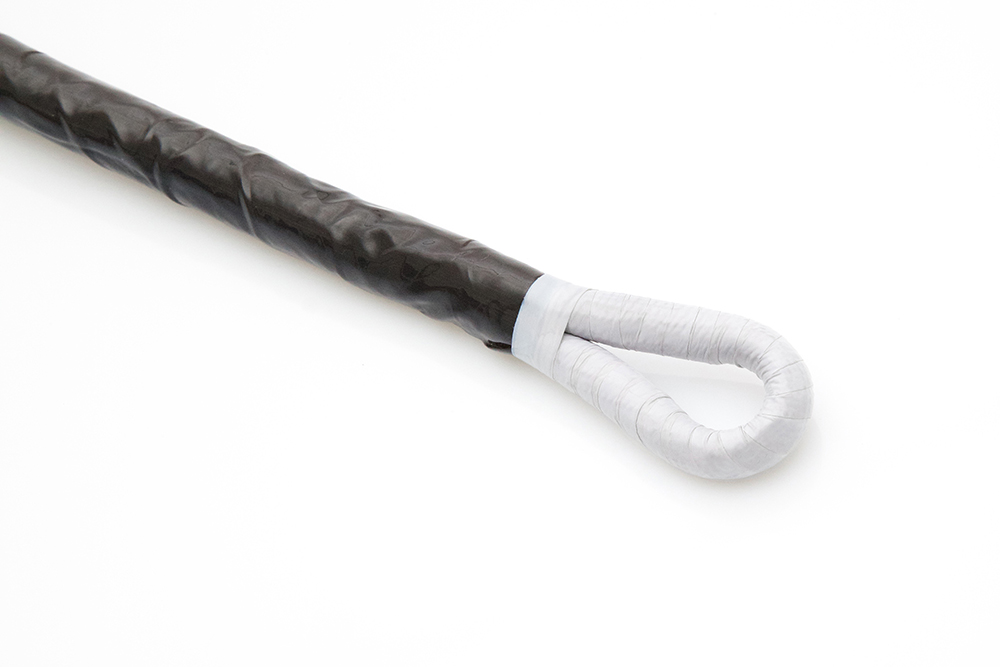

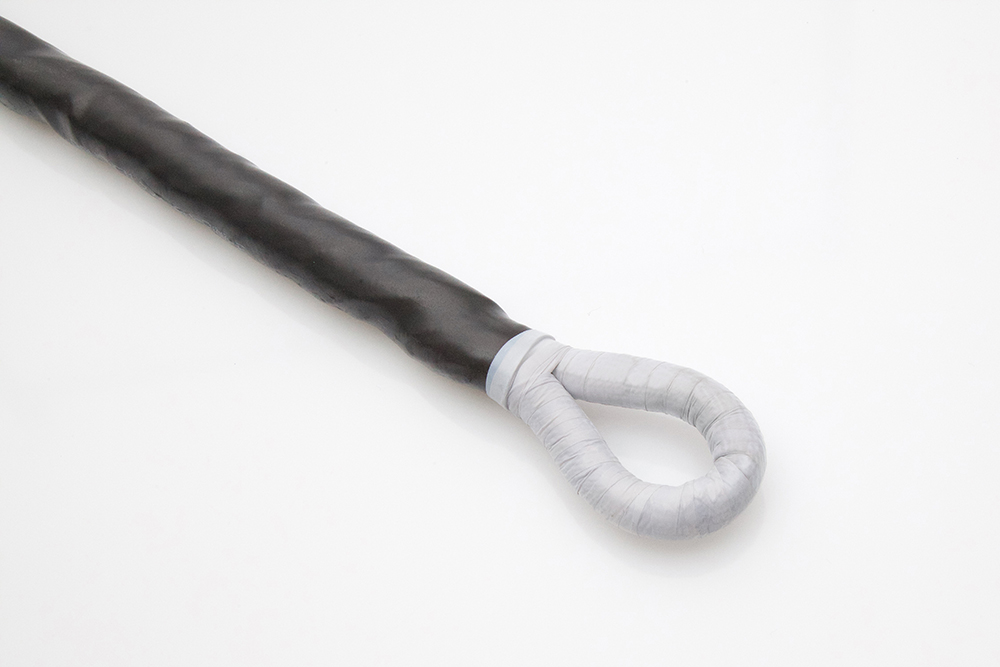

- Standard
- special hybrid textile technology
- tether and loops can be manufactured in soft and hard versions

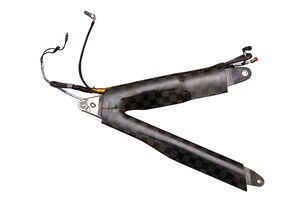

Rear impact structure and rear wing tethers
Rear impact structure tethers - RIS tethers
- In accordance with the FIA Technical Regulations
- cross-sectional area of 20 mm²
- minimum tensile strength of 24 kN
Rear wing tethers, single
- cross-sectional area 7 mm² (≈ Ø 3.5 mm)
- tensile force > 5 kN
Rear wing tethers, combined
- cross-sectional area 14 mm² (≈ Ø 4.25 mm)
- tensile force > 10 kN
Further restraint cables are available on request.
